Python cv2 輪廓描繪處理

woff

原圖：



完整代碼

1. import cv2

2. image = cv2.imread('coins2.png')

3. image = cv2.cvtColor(image,cv2.COLOR_BGR2RGB)

4. cv2.imshow('Original',image)

5. cv2.imwrite('coin1_Original.png', image)

6. print(image.shape)

7. gray = cv2.cvtColor(image, cv2.COLOR_BGR2GRAY)

8. cv2.imshow('gray',gray)

9. cv2.imwrite('coin1_gray.png',gray)

10. cv2.waitKey()

複製代碼

1. import cv2,coin1

2. gray = coin1.gray

3. image = coin1.image

4. print('高斯模糊處理')

5. blurred = cv2.GaussianBlur(gray,(13,13),0) # 高斯模糊的目的是把雜訊過濾掉

6. cv2.imshow('blurred',blurred)

7. cv2.imwrite('coin2_GaussianBlur.png', blurred)

8. print('高斯模糊的目的是把雜訊過濾掉')

9. print('邊緣偵測，邊緣偵測不代表輪廓處理')

10. edged = cv2.Canny(blurred, 30, 150)

11. cv2.imshow('Canny',edged)

12. cv2.imwrite('coin2_Canny.png', edged)

13. cv2.waitKey()

複製代碼

1. import cv2,coin_2

2. gray = coin_2.gray

3. image = coin_2.image

4. blueeed = coin_2.blurred

5. edged = coin_2.edged

6. #edged2 = coins_2.edged2

7. print('輪廓處理')

8. contours , hierarchy = cv2.findContours(

9.     edged.copy(),cv2.RETR_EXTERNAL,

10.     cv2.CHAIN_APPROX_SIMPLE

11. )

12. print('count1:',len(contours))

13.

14. # contours , hierarchy = cv2.findContours(

15. #     edged2.copy(),cv2.RETR_EXTERNAL,

16. #     cv2.CHAIN_APPROX_SIMPLE

17. # )

18. print('count2:',len(contours))

19. print('contours:',contours)

20. print('hierarchy:',hierarchy)

21. coins = image.copy()

22. cv2.drawContours(coins, contours,-1,(0,255,0),1)

23. cv2.imshow('coins',coins)

24. cv2.waitKey()

複製代碼

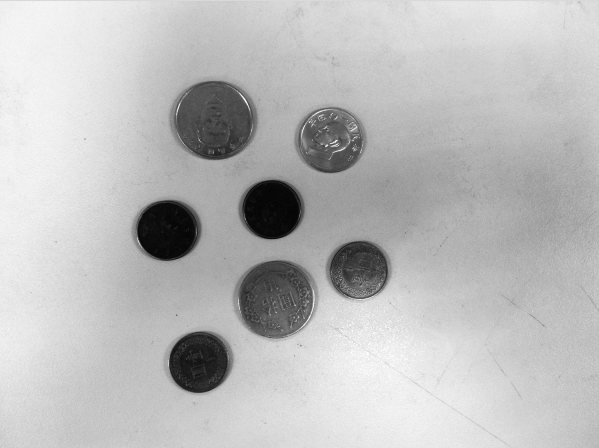

灰階圖



高斯模糊圖

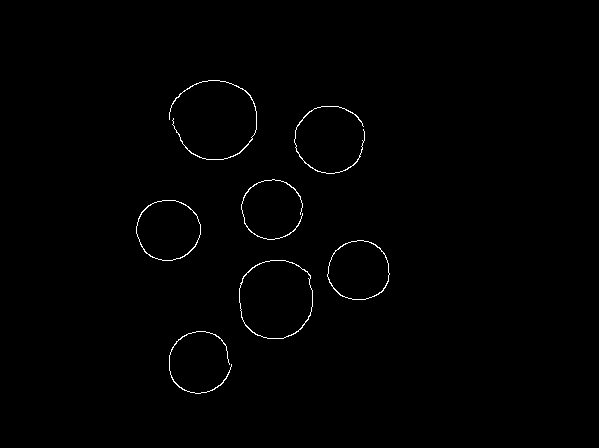

Canny圖


輪廓描繪圖
